L-shaped table bracket

Sizes and packaging

Dimensions in millimetres; quantities per box and carton.

Code	Size	Thickness	A	B	C	Per box
00617	15 × 16 × 16	2	15	16	16	100 pcs
00618	15 × 20 × 20	2	15	20	20	100 pcs
00619	15 × 25 × 25	2	15	25	25	100 pcs
00620	15 × 35 × 35	2	15	35	35	100 pcs
00621	15 × 45 × 45	2	15	45	45	100 pcs
00622	15 × 55 × 55	2	15	55	55	100 pcs
00623	15 × 65 × 65	2	15	65	65	100 pcs
00624	15 × 75 × 75	2	15	75	75	100 pcs
00628	17 × 30 × 30	2	17	30	30	100 pcs
00630	20 × 25 × 25	2	20	25	25	100 pcs
00631	20 × 30 × 30	2	20	30	30	100 pcs
00632	20 × 35 × 35	2	20	35	35	100 pcs
00633	20 × 45 × 45	2	20	45	45	100 pcs
00634	20 × 55 × 55	2	20	55	55	100 pcs
00635	20 × 65 × 65	2	20	65	65	100 pcs
00636	20 × 75 × 75	2	20	75	75	100 pcs
00637	20 × 85 × 85	2	20	85	85	100 pcs
00638	20 × 95 × 95	2	20	95	95	100 pcs
00640	20 × 70 × 120	2	20	70	120	100 pcs

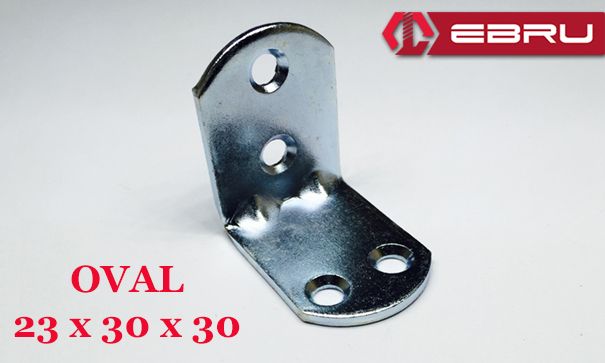

00670	23 × 30 × 30	2	23	30	30	100 pcs
00641	25 × 35 × 35	2	25	35	35	100 pcs
00642	25 × 50 × 50	2	25	50	50	100 pcs

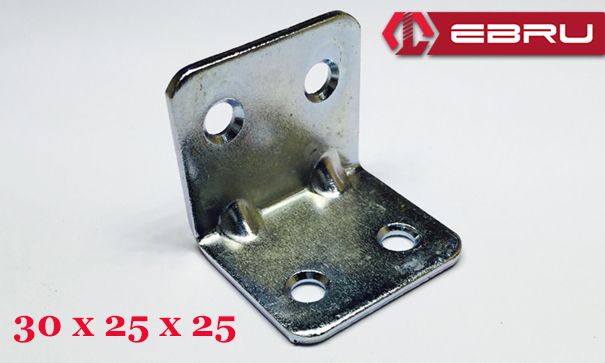

00655	30 × 25 × 25	2	30	25	25	100 pcs

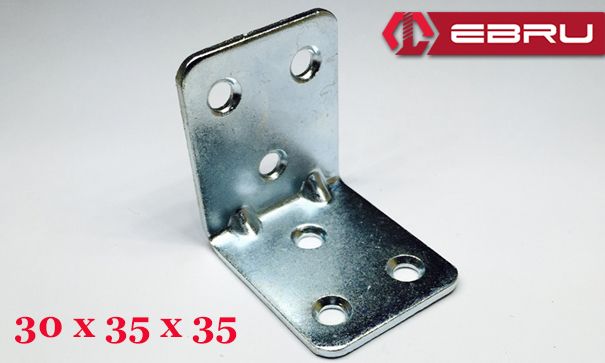

00656	30 × 35 × 35	2	30	35	35	100 pcs

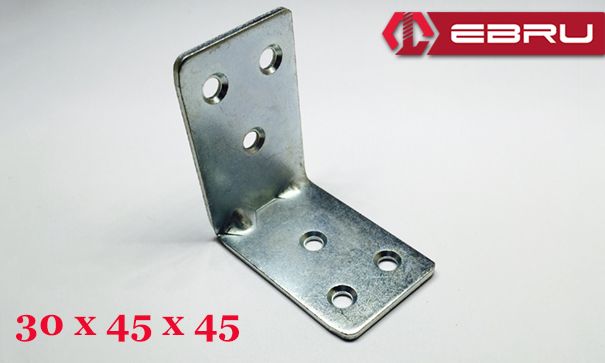

00657	30 × 45 × 45	2	30	45	45	100 pcs
00658	40 × 30 × 30	2	40	30	30	100 pcs
00659	40 × 40 × 40	1.5	40	40	40	100 pcs
00662	40 × 40 × 115	2	40	40	115	20 pcs

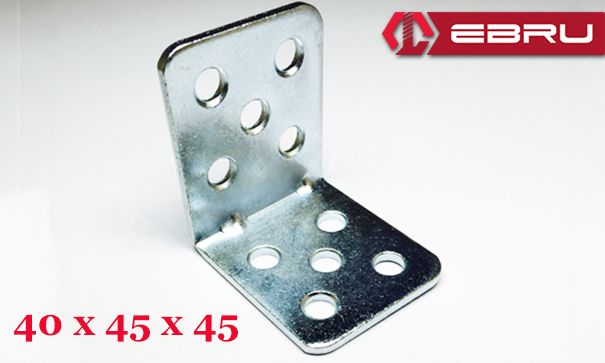

00661	40 × 45 × 45	2.5	40	45	45	100 pcs

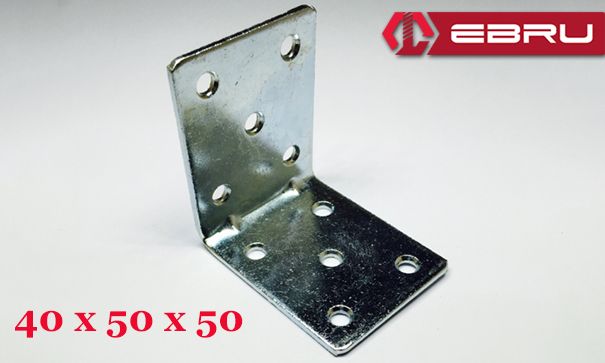

00660	40 × 50 × 50	2	40	50	50	100 pcs
00663	40 × 50 × 102	2	40	50	102	50 pcs
00664	55 × 40 × 40	2	55	40	40	50 pcs

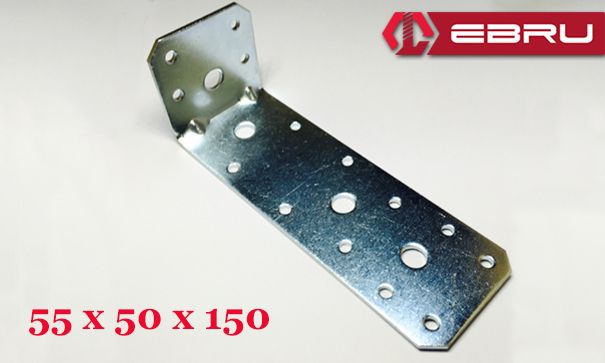

00666	55 × 50 × 150	2.5	55	50	150	25 pcs

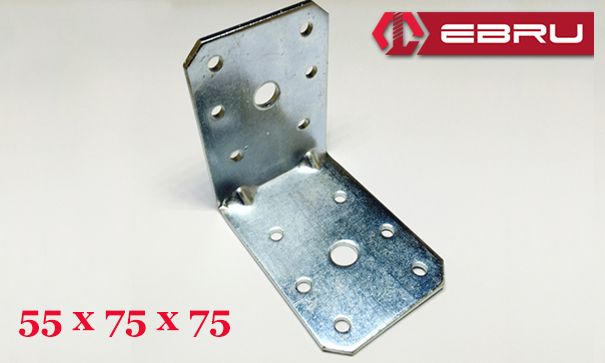

00665	55 × 75 × 75	2.5	55	75	75	25 pcs

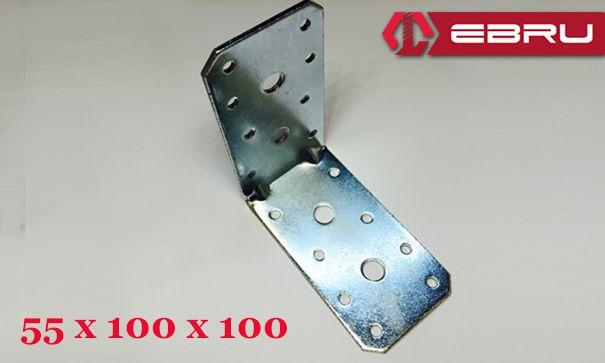

00667	55 × 100 × 100	2.5	55	100	100	25 pcs
00668	80 × 58 × 58	2	80	58	58	20 pcs
00669	86 × 76 × 76	2.5	86	76	76	25 pcs

Current price lists and stock levels are shown in the dealer portal.

If you need a size or finish not listed here, send us a drawing or a photo of a sample.
