Eye bolt
- Product group
- Screw hooks and eyes
- Sizes
- 3
Sizes and packaging

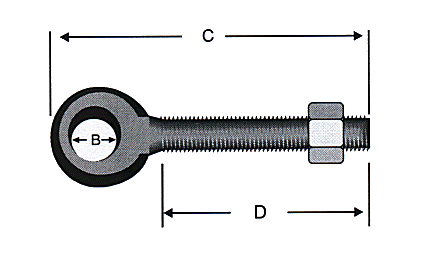

Dimensions in millimetres; quantities per box and carton.
| Code | Size | B | C | D | Per box | Carton | Carton weight |
|---|---|---|---|---|---|---|---|
| 196 | Gözlü Civata M6 | 6.5 | 73 | 62 | 50 pcs | 20 boxes | 17 kg |
| 197 | Gözlü Civata M8 | 7.5 | 75.5 | 62 | 50 pcs | 20 boxes | 25 kg |
| 198 | Gözlü Civata M10 | 9 | 92.5 | 75 | 50 pcs | 12 boxes | 30 kg |
Prices and stock
Current price lists and stock levels are shown in the dealer portal.
Need a different size or finish?
If you need a size or finish not listed here, send us a drawing or a photo of a sample.
Ask about custom manufacturing
