Ring bolt
- Product group
- Ring products
- Sizes
- 5
Sizes and packaging

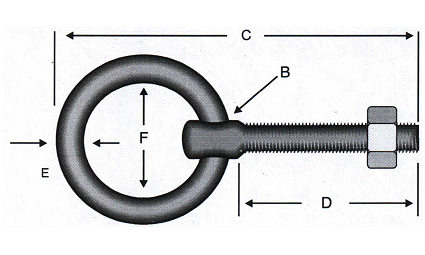

Dimensions in millimetres; quantities per box and carton.
| Code | Size | C | D | E | F | Per box | Carton | Carton weight |
|---|---|---|---|---|---|---|---|---|
| 190 | Halkalı Civata M5 | 100 | 50 | 5 | 27 | 50 pcs | 12 boxes | 17 kg |
| 191 | Halkalı Civata M6 | 115 | 62 | 5 | 30 | 50 pcs | 12 boxes | 21 kg |
| 192 | Halkalı Civata M8 | 115 | 62 | 6 | 30 | 50 pcs | 12 boxes | 33 kg |
| 193 | Halkalı Civata M10 | 130 | 75 | 7 | 35 | 30 pcs | 12 boxes | 36 kg |
| 194 | Halkalı Civata M10/2 | 170 | 115 | 7 | 35 | 30 pcs | 10 boxes | 35 kg |
Prices and stock
Current price lists and stock levels are shown in the dealer portal.
Need a different size or finish?
If you need a size or finish not listed here, send us a drawing or a photo of a sample.
Ask about custom manufacturing
