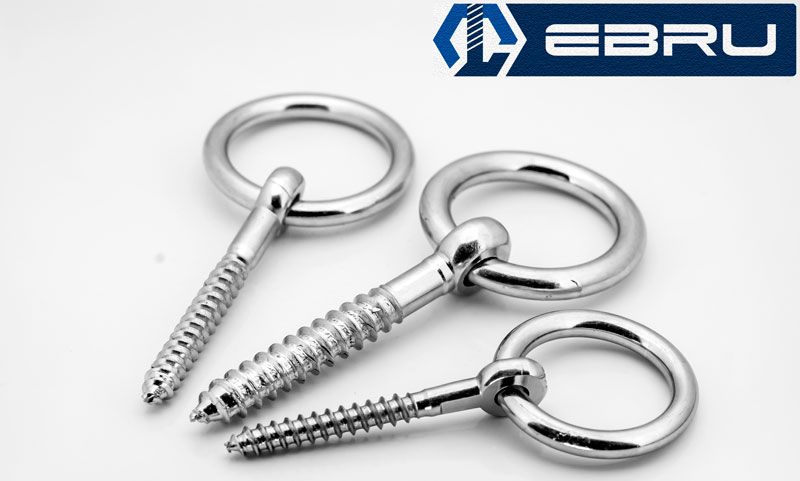

Ring screw
- Product group
- Ring products
- Sizes
- 4
Sizes and packaging

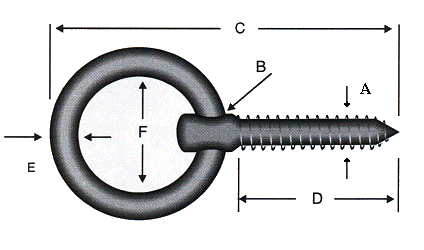

Dimensions in millimetres; quantities per box and carton.
| Code | Size | C | D | E | F | Per box | Carton | Carton weight |
|---|---|---|---|---|---|---|---|---|
| 200 | Halkalı Vida 5 | 100 | 50 | 5 | 27 | 50 pcs | 12 boxes | 15 kg |
| 201 | Halkalı Vida 6 | 115 | 62 | 5 | 30 | 50 pcs | 12 boxes | 19 kg |
| 202 | Halkalı Vida 8 | 115 | 62 | 6 | 30 | 50 pcs | 12 boxes | 30 kg |
| 203 | Halkalı Vida 10 | 130 | 75 | 7 | 35 | 50 pcs | 12 boxes | 31 kg |
Prices and stock
Current price lists and stock levels are shown in the dealer portal.
Need a different size or finish?
If you need a size or finish not listed here, send us a drawing or a photo of a sample.
Ask about custom manufacturing
