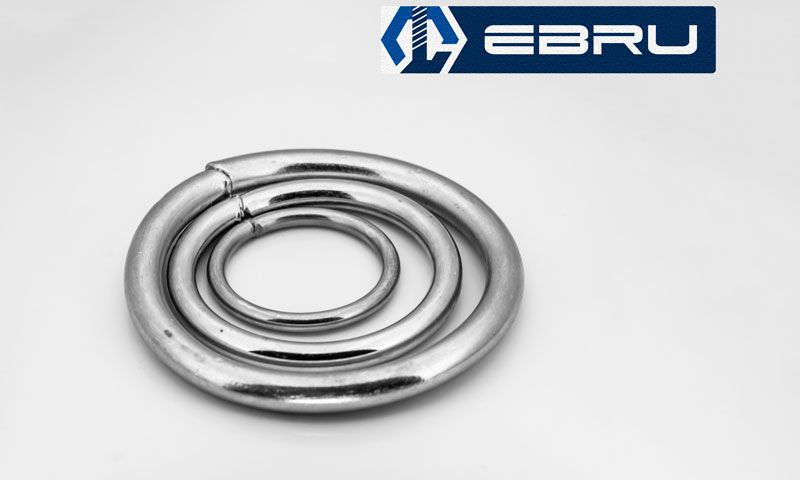

Welded ring
- Product group
- Ring products
- Sizes
- 10
Sizes and packaging

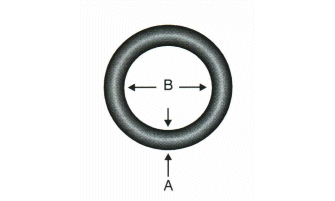

Dimensions in millimetres; quantities per box and carton.
| Code | Size | A | B | Per box | Carton | Carton weight |
|---|---|---|---|---|---|---|
| 181 | HALKA 12 | 3 | 20 | 100 pcs | 30 boxes | 20 kg |
| 182 | HALKA 14 | 3.5 | 25 | 100 pcs | 30 boxes | 22 kg |
| 183 | HALKA 16 | 4 | 30 | 100 pcs | 12 boxes | 13 kg |
| 184 | HALKA 18 | 4.2 | 35 | 100 pcs | 12 boxes | 20 kg |
| 185 | HALKA 20 | 4.6 | 40 | 100 pcs | 12 boxes | 22 kg |
| 187 | HALKA EXTRA 1 | 5 | 30 | 100 pcs | 12 boxes | 21 kg |
| 188 | HALKA EXTRA 2 | 6 | 40 | 50 pcs | 12 boxes | 20 kg |
| 189 | HALKA EXTRA 3 | 7 | 50 | 30 pcs | 12 boxes | 22 kg |
| 370 | HALKA 8 × 65 | 8 | 65 | 25 pcs | 10 boxes | 26 kg |
| 371 | HALKA 10 × 75 | 10 | 75 | 25 pcs | 10 boxes | 30 kg |
Prices and stock
Current price lists and stock levels are shown in the dealer portal.
Need a different size or finish?
If you need a size or finish not listed here, send us a drawing or a photo of a sample.
Ask about custom manufacturing
